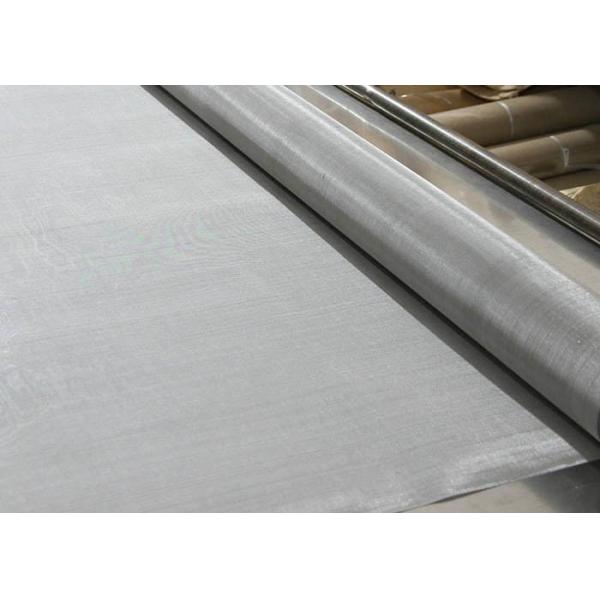

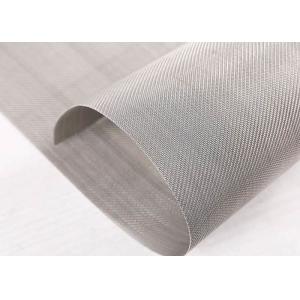

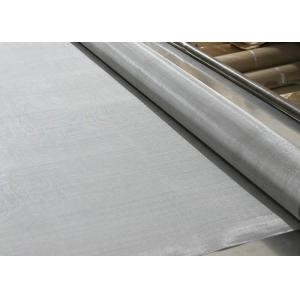

    350mesh Monel Wire Mesh For Marine And Chemical Environment

    Ask Lasest Price
    Brand Name : Citti Mesh
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : large supply
    Delivery Time : a week
    • Product Details
    • Company Profile

    350mesh Monel Wire Mesh For Marine And Chemical Environment


    Monel Wire Mesh – Excellent for Marine and Chemical Environment


    Monel series materials include Monel400,Monel401, Monel404, MonelR405 and Monel K-500. The most popular monel mesh is made of Monel 400 or Monel K-500.


    Chemical Composition


    MaterialCMnSiSNiCuFe
    Monel 400≤0.30≤2.00≤0.50≤0.024≥6328.0~34.0≤2.5

    Monel 400 Wire Mesh significantly resists de-aerated hydrochloric acid and hydrofluoric acids. It provides broad resistance to stress corrosion cracking in the fresh water and other corrosion conditions. It shows intense mechanical features at the subzero temperatures and firmness and toughness. It doesn't exhibit ductile to brittle transformation when quenched to fluid hydrogen temperature level.


    Table 2: Specifications of Monel 400 Wire Mesh
    MeshWire DiameterOpening (mm)
    mminch
    2 mesh1.800.07110.90
    3 mesh1.600.0636.866
    4 mesh1.200.0475.15
    5 mesh0.910.0364.17
    6 mesh0.7110.0283.522
    8 mesh0.6100.0242.565
    10 mesh0.5080.0202.032
    12 mesh0.4570.0181.660
    14 mesh0.4170.0161.397
    16 mesh0.3450.0141.243
    18 mesh0.3150.0121.096
    20 mesh0.3150.01240.955
    22 mesh0.3150.01240.840
    24 mesh0.3150.01240.743
    26 mesh0.2950.01160.682
    28 mesh0.2950.01160.612
    30 mesh0.2740.0110.573
    32 mesh0.2540.0100.540
    34 mesh0.2340.00920.513
    36 mesh0.2340.00920.472
    38 mesh0.2130.00840.455
    40 mesh0.1930.00760.442
    42 mesh0.1930.00760.412
    44 mesh0.1730.00680.404
    46 mesh0.1730.00680.379
    48 mesh0.1730.00680.356
    50 mesh0.1730.00680.335
    60 × 50 mesh0.1930.0076-
    60 × 50 mesh0.1730.0068-
    60 mesh0.1730.00680.250
    70 mesh0.1320.00520.231
    80 mesh0.1220.00480.196
    90 mesh0.1120.00440.170
    100 mesh0.0120.0040.152
    120 × 108 mesh0.0910.0036-
    120 mesh0.0810.00320.131
    140 mesh0.0610.00240.120
    150 mesh0.0610.00240.108
    160 mesh0.0610.00240.098
    180 mesh0.0510.0020.090
    200 mesh0.0510.0020.076
    220 mesh0.0510.0020.065
    250 mesh0.0410.00160.061
    280 mesh0.0350.00140.056
    300 mesh0.0310.00120.054
    320 mesh0.0310.00120.046
    330 mesh0.0310.00120.042
    350 mesh0.0310.00120.039
    360 mesh0.0250.000980.0385
    400 mesh0.0250.000980.0385


    MaterialCMnSiSNiCuTiALFe
    Monel k-500≤0.25≤1.50≤0.05≤0.01≥6327.0~33.00.35~0.852.30~3.15≤2.0

    Monel K500 Wire Mesh offers excellent resistance to corrosion as well as large strength and hardness. The strength of this alloy is retained up to 1200oF however it shows ductility and toughness up to 400oF. It has very high melting temperature of 2400oF to 2460oF. The Monel K500 alloy has almost three times higher yield strength and tensile strength as compare to Monel 400 mesh.


    Features:


    Superior corrosion resistance and acid-alkali resistance than stainless steel, High temperature resistance, high tensile strength and excellent hardness.


    Applications:


    Widely used in chemical and petrochemical industry and marine development. Seawater filtration, in the condition of acid, alkali, salt environment, chemical industry electrode, battery industry electrode, Electronic device shielding and so on. Customized, Acceptable as per your request.

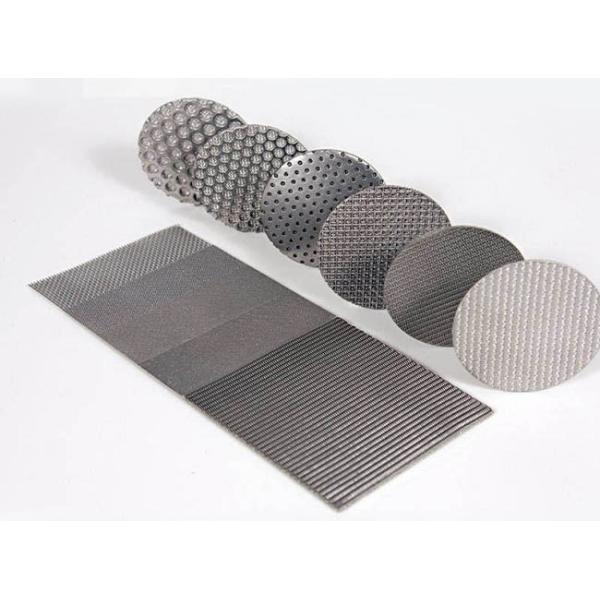

    For Sintered Filter Discs



    For Burners Screen
